Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m

Çin Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m Tedarikçi
Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m Tedarikçi Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m Tedarikçi Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m Tedarikçi Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m Tedarikçi Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m Tedarikçi Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m Tedarikçi Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m Tedarikçi

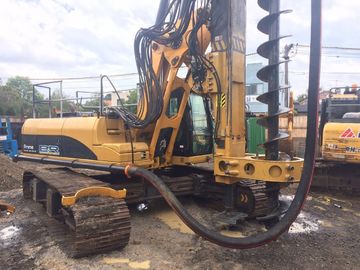

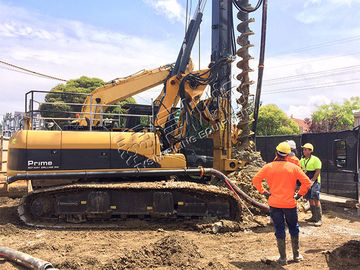

Büyük resim :  Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m

Ürün ayrıntıları:

Menşe yeri: Jiangsu, Çin
Marka adı: TYSIM
Sertifika: CE ISO9001
Model numarası: KR125M

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Set
Fiyat: Negotiation
Ambalaj bilgileri: Yöntem bir: Çıplak ambalaj ve deniz gemi roll-on-roll-off ile genel taşıma. Yöntem iki: Düz raf kon
Teslim süresi: ödeme aldıktan sonra 40 gün
Yetenek temini: Yılda 10 setleri
Contact Now
Detaylı ürün tanımı
Tork: 125 kN.m mak. çap: 700 mm
Maks. sondaj derinliği: 15 m Direk eğimi (ileri): 3 °
Ulaştırma Yüksekliği: 3500 mm Taşıma genişliği: 2990 mm
Taşıma uzunluğu: 13.960 mm Toplam ağırlığı: 35 t

Technical Specification



Technical specification of KR125M rotary drilling rig (CFA &rotary drilling rig)

CFA construction method





Max. diameter 700mm
Max. drilling depth 15m
Main winch line pull 240 kN

Rotary drilling construction method









Max. Diameter 1300 mm
Max. drilling depth 37m
Main winch line pull 120 kN
Main winch line speed 78 m/min

Working parameters

















Max. torque 125 kN.m
Auxiliary winch line pull 60 kN
Auxiliary winch line speed 60 m/min
Mast inclination(lateral) ±3°
Mast inclination(forward)
Max. operating pressure 34.3 MPa
Pilot pressure 3.9 MPa
Travel speed 2.8 km/h
Traction force 204 kN

Operating size



Operating height 18200 mm(CFA)/14800mm(rotary drilling)
Operating width 2990 mm

Transport size





Transport height 3500 mm
Transport width 2990 mm
Transport length 13960 mm
Total weight Overall weight 35 t



Product Details



1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other

Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m



2. Hydraulic Parts-----World Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported

Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m



3. Structure Parts-----Professional Structure Parts Supplier for XCMG

Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m





Why Choose Us?



1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.

2. Supply professional customized service to meet all your requirements.

3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.

4. Competitive price.



FAQ


Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.
